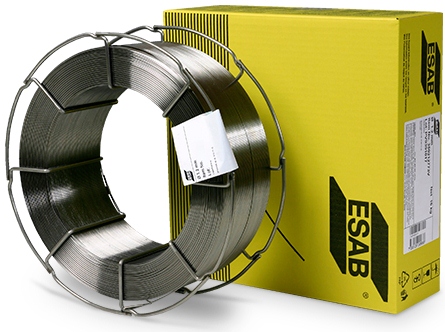

SHIELD-BRIGHT 316L

Shield-Bright 316L was developed for the welding of Type 316L stainless steel but can be used for other stainless steels including Types 316 and 304L. In a few cases, e.g. nitric acid service, Shield-Bright 316L should not be used to weld 304L. It contains molybdenum which resists pitting corrosion induced by sulphuric and sulphurous acids, chlorides and cellulose solutions. Used widely in the rayon, dye and paper making industries.

Descripción

Propiedades tensoras típicas

As welded
Alargamiento Gas de protección Límite de elasticidad Resistencia a la tracción
40 % M21 Shielding Gas 450 MPa 580 MPa
53 % C1 Shielding Gas 442 MPa 570 MPa

Propiedades de Ensayo de impacto Charpy

As welded
Gas de protección Temperatura de ensayo Valor de impacto
C1 Shielding gas -29 °C 60 J
C1 Shielding gas -196 °C 26 J

Análisis del Metal de Soldadura

weld metal analysis
P Mn Mo C S Si Ni Cr
0.027 % 1.10 % 2.60 % 0.028 % 0.010 % 0.80 % 11.8 % 18.50 %

Datos aportación

Diámetro
1.2 mm
Aprobaciones: ABS; E316LT1-1 (C1); ABS; E316LT1-4 (M21); BV; 316L (C1); BV; SA 316L (M21); CE; EN 13479; ClassNK; KW316LG(C); CWB; E 316LT1-1 (C1); CWB; E 316LT1-4 (M21); DNV; NV 316L (C1); DNV-GL; VL 316L (M21); KR; RW316LG(C) (C1); LR; 316L (C1); VdTÜV; 04834
Clasificaciones: SFA/AWS A5.22; E316LT1-1; Weld Metal; SFA/AWS A5.22; E316LT1-4; Weld Metal; JIS Z 3323; TS316L-FB1; Weld Metal; KS D 3612; YF 316LC; Weld Metal; EN ISO 17633-A; T 19 12 3 L P C1 2; Weld Metal; EN ISO 17633-A; T 19 12 3 L P M21 2; Weld Metal

Aprobaciones vinculadas a la planta de producción. Para obtener más información, pongase en contacto con ESAB.

Corriente de soldadura: DC+
Tipo de aleación: C Cr Ni Mo
