OK TIGROD 13.32 (ER80S-B6)

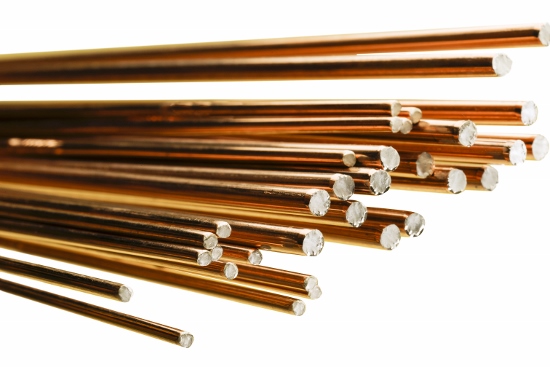

El OK Tigrod 13.32 es una varilla de acero de baja aleación, del tipo 5% Cr, 0,5% Mo, revestida de cobre, para el soldeo TIG (GTAW) de materiales de composición similar. El OK Tigrod 13.32 se utiliza normalmente con Ar puro como gas protector. Aunque los valores mínimos de las propiedades mecánicas se obtienen directamente tras el soldeo, la unión debe someterse a tratamiento térmico posterior.
Descripción
| Clasificaciones: | EN ISO 21952-A, W CrMo5Si, Wire Electrode, EN ISO 21952-B, W 55 5CM, Wire Electrode, SFA/AWS A5.28, ER80S-B6, Wire Electrode |
| Alloy Type: | Low alloyed steel (5 % Cr – 0.5 % Mo) |
Propiedades de Ensayo de impacto Charpy
| Ar (I1) AWS As welded | |||
| Impact Value | Testing Temperature | Stress Relieved Testing Temp | Stress Relieved Testing Time |
| 100 J | 20 °C | – | – |
| 80 J | -20 °C | – | – |
| 50 J | -29 °C | – | – |
| Ar (I1) AWS Stress relieved | |||
| Impact Value | Testing Temperature | Stress Relieved Testing Temp | Stress Relieved Testing Time |
| 230 J | 20 °C | 745 °C | 1 hr |
| 200 J | -20 °C | 745 °C | 1 hr |
| 200 J | -29 °C | 745 °C | 1 hr |
| Ar (I1) EN Stress relieved | |||
| Impact Value | Testing Temperature | Stress Relieved Testing Temp | Stress Relieved Testing Time |
| 250 J | 20 °C | 730-760 °C | 1 hr |
Typical Tensile Properties
| Ar (I1) AWS As welded | ||||
| Elongation | Tensile Strength | Yield Strength | Stress Relieved Temperature | Stress Relieved Testing Time |
| 22 % | 900 MPa | 730 MPa | – | – |
| Ar (I1) AWS Stress relieved | ||||
| Elongation | Tensile Strength | Yield Strength | Stress Relieved Temperature | Stress Relieved Testing Time |
| 22 % | 680 MPa | 580 MPa | 745 °C | 1 hr |
| Ar (I1) EN Stress relieved | ||||
| Elongation | Tensile Strength | Yield Strength | Stress Relieved Temperature | Stress Relieved Testing Time |
| 19 % | 477 MPa | 430 MPa | 730-760 °C | 1 hr |
| 18 % | 527 MPa | 465 MPa | 730-760 °C | 1 hr |
| 23 % | 640 MPa | 550 MPa | 730-760 °C | 1 hr |
